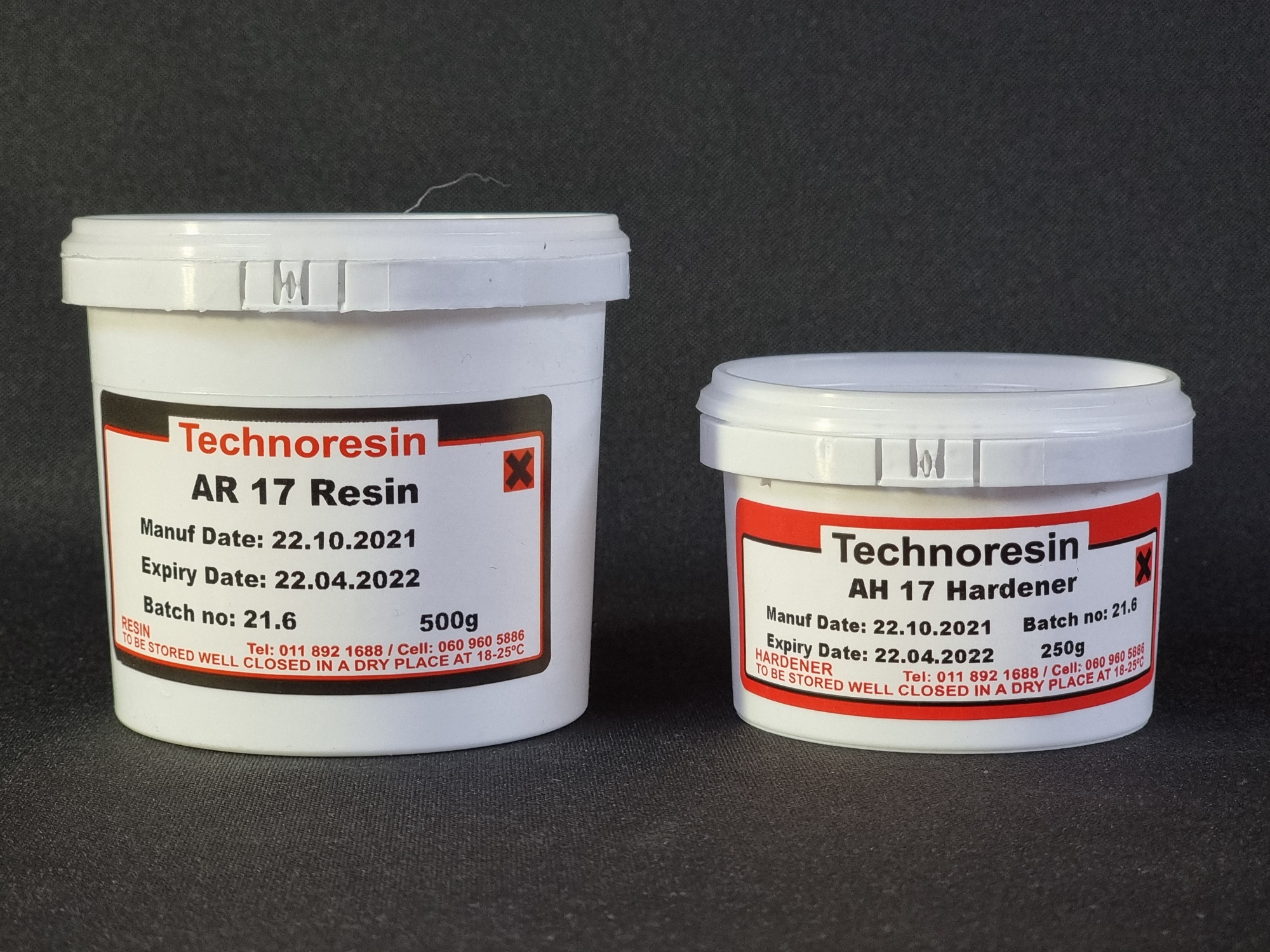

AR17– AH17 Food Safe Adhesive
AR17 Resin 1 x 500g Bottle
AH17 Hardener 1 x 250 g Bottle
General purpose, high strength epoxy adhesive. No fillers added, resilient. Medium development of adhesive strength. Ideal to bond steel, aluminium, stone, and concrete. Excellent adhesion to Metals and Concrete. High tensile and compressive strength. Excellent water soak and environment resistance. No Food Certificate available from raw materials suppliers.
Description
Colour:
AR17: White opaque liquid
AH17: Amber opaque liquid
Mixing Ratio: by weight or volume
Metals / Concrete/ Ceramics / Wood
AR17 100
AH17 50
Specific Gravity: AR17 : 1 AH17 : 1
Pot Life: 40 to 60 minutes (100 Grams)
Thin Film Set Time: 10 hours at 25 Deg. C
Setting Time: 6 – 10 Hour at 25 Deg. C
Full Cure: 3 days at 25 Deg C or
45 minutes at 70 Deg C
20 minutes at 100 Deg C
CHARACTERISTICS after CURE
(7 Days at 25 Deg. C) (100 – 50)
Hardness: 75 Shore D
Bond Strength: 26 Mpa (Steel)
Tensile Strength: 90 Mpa (Steel)
Tensile Elongation 9 %
Flexural Strength: 70 Mpa (Steel)
Lap Shear Strength: 15 Mpa (30 days on galvanised steel)
Heat Distortion Temperature: 50 Deg C
The above data are offered for customer’s guidance only. It implies no guarantee. Customers must conduct their own tests to determine the suitability of the material for their specific applications. Technoresin cannot assume responsibility for results obtained by use of this product as we have no control over end-use application or handling. Technoresin therefore specifically disclaims any damage or loss of any kind in relation to the use of this product. (Version 20.1 Date 1.2.2020)
