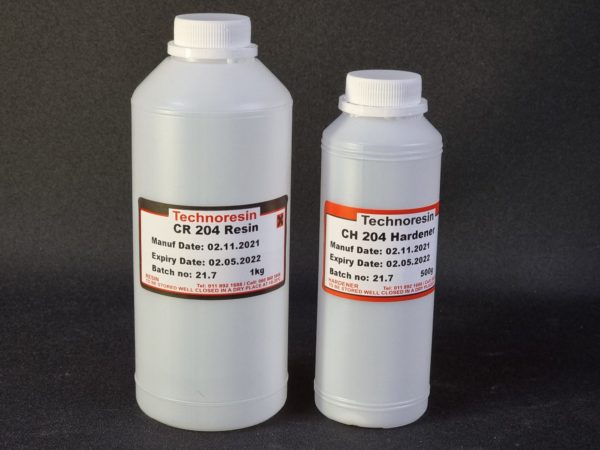

CR204/CH204/Clear Electrical Potting Resin/1,5kg

Resin CR 204 / Hardener CH 204



CR204 Clear Resin:               1 kg

CH204 Clear Hardener:      500 g



Low viscosity, clear, low shrinkage epoxy casting resin system for encapsulation of electrical equipment. Used mainly to encapsulate small transformers. Good mechanical and electrical properties.



Description



Colour:               Amber, clear

Mixing Ratio:

CR204         100     by weight

CH204          50



Viscosity:

CR204           1500 to 1800 mPa.s at 25 Deg. C

CH204           250 to 350 mPa.s at 25 Deg. C

Mixture          750 to 900 mPa.s at 25 Deg. C

Mixture          300 to 350 mPa.s at 39 Deg. C



Specific density:

   Resin: 1,1 – 1,15

   Hardener: 0,95 – 0,98

Pot life (300g) :   15 to 20 minutes  at 25 Deg. C

Gelation Time (300g): 25 to 30 minutes at 25 Deg. C

Setting Time (300g):  40 at 40 minutes at 25 Deg. C



CHARACTERISTICS after CURE

(after 7 days @ 25 C)

(Estimated)

Hardness:                                             70 to 80 Shore D

Dielectric Strength:                          19 KV / mm (Approx.)

Heat Distortion Temperature:     55 to 60 Deg. C

Tensile Strength:                               48 MPa

Flexural Strength:                             65 MPa

Continuous Temp. of Operation: 90 Deg. C (25000 h weight loss)



The above data are offered for customer’s guidance only. It implies no guarantee. Customers must conduct their own tests to determine the suitability of the material for their specific applications.
