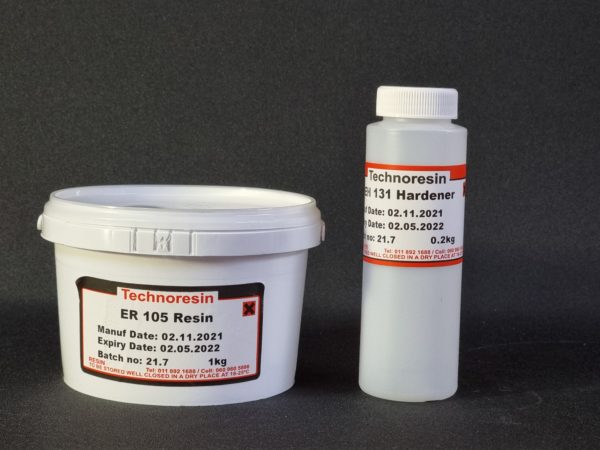

ER105/EH131 Filled Potting Resin Grey / 1,2Kg

Resin ER105 – Hardener EH131



ER105  Resin Grey:    1 kg     Bucket

EH131  Hardener:      200g    Bottle

Medium viscosity epoxy casting resin system for encapsulation of electrical equipment, grouting and general concrete repair. Additional fine washed sand (0,2 to 0,5 mm) can be added for floor repairs.



Description



Colour:                Grey

Mixing Ratio:

ER105       100      by weight

EH131        20

Viscosity:

ER105    30000  mPa.s at 25 Deg. C

EH131     300  mPa.s at 25 Deg. C

Pot Life:       30 to 40 minutes at 25 Deg. C

Gelation Time:    3   to 4 Hours at 25 Deg. C

(Gelnorm DIN 16945, 16 mm dia. test tube)

Curing Time:     6 to 8 hours at 25 Deg. C (500 Grams)



CHARACTERISTICS after CURE

(after 7 days at 25 Deg. C)

 (Estimated)

Hardness:                                               85 Shore D

Tensile Strength:                                 30  MPa

Compressive Strength:                     100 Mpa

Flexural Strength:                               70 Mpa

Impact Strength:                                  15 to 20 KJ/m2

Heat Distortion Temperature:        65 Deg. C

Water Absorption:           0,3 % 30 days at 25 Deg. C

Shrinkage:                          0,01 mm/mm max.

Dielectric Strength:       13 KV / mm (Approx.)

Heat Distortion Temperature:         60 Deg. C





The above data are offered for customer’s guidance only. It implies no guarantee. Customers must conduct their own tests to determine the suitability of the material for their specific applications.
