LR108/EH108/Clear Liquid Epoxy Adhesive/3.0 kg

Resin LR108 – Hardener EH108



Low viscosity liquid epoxy adhesive.

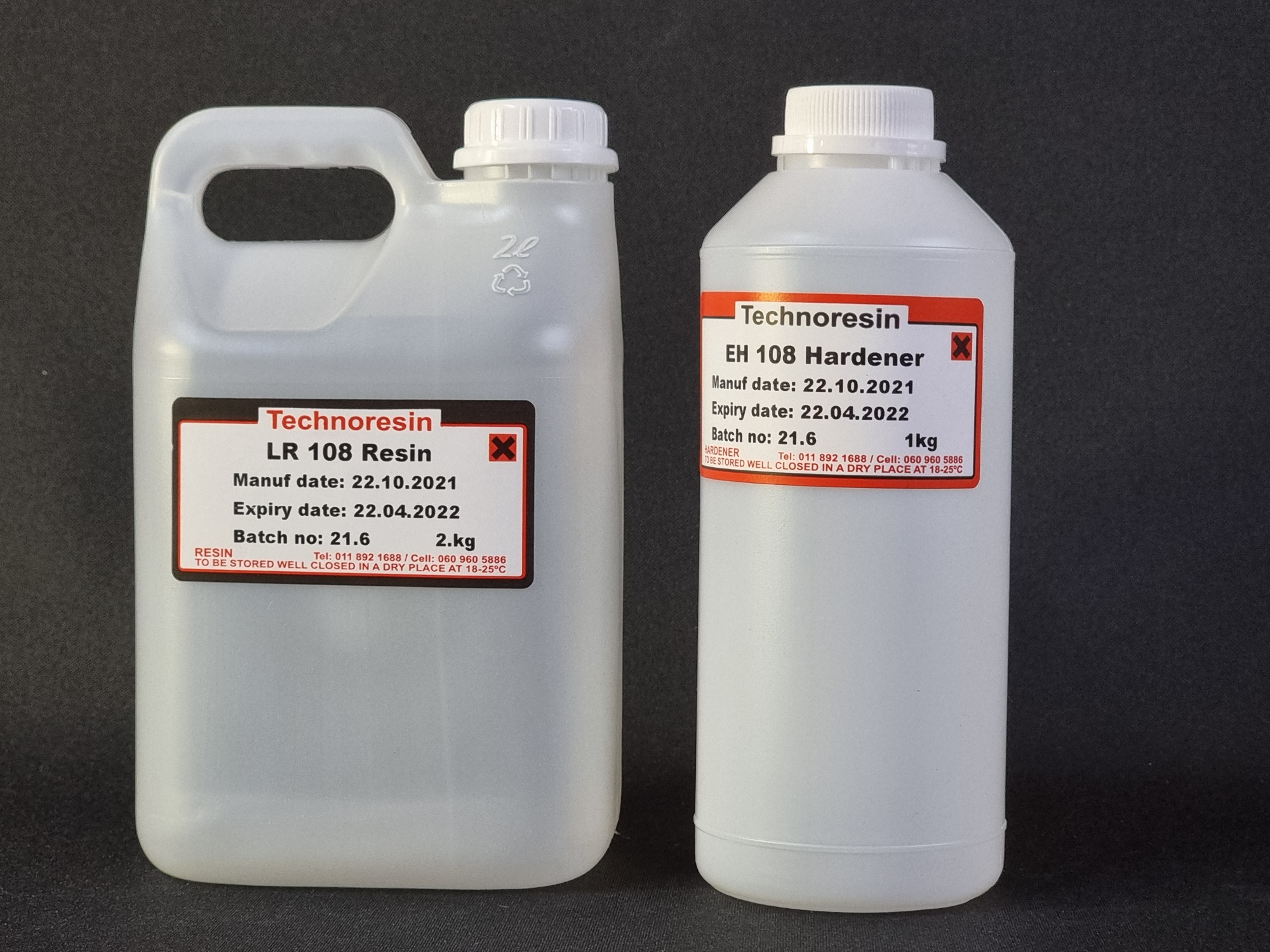

LR108 Resin :            1 x 2,0 kg   Bottle

EH108 Hardener:    1 x 1,0 kg    Bottle



Low viscosity, clear, economic, epoxy resin system for adhesive and sealing applications. It can also be used for potting of electronic systems. Used for manufacturing of brushes.

EH108 has low viscosity, with good chemical resistance, low shrinkage, good mechanical properties.

This system is ideal for electrical potting and casting, wet lay-up, tooling and adhesives. To avoid heat build up during application, apply within 30 minutes. The larger the mass of the mixture, the more heat it will develop. Mixing ratio by weight is more accurate and reliable.

 Description

 Colour:      LR108 Clear, EH108 Amber

 Mixing Ratio:

LR108             100,0   by weight

EH108            50,0

 Viscosity:     LR108      2000 t mPa.s at 25 Deg. C

                          EH108      300  mPa.s at 25 Deg. C

 Pot Life:        30 to 40 minutes

Gelation Time: (150 g)  50 minutes     at 25 Deg. C

Thin Film Set Time:           6  to 9 hours

CHARACTERISTICS after CURE

(Approximate)

Flexural Strength:                         90 MPa

Tensile Strength:                           45 MPa

Elongation in Tension:                 3,0  %

Hardness Shore D                         80

Heat Distortion Temperature:     60 Deg. C (7 days at 25 Deg C)

The above data are offered for customer’s guidance only. It implies no guarantee. Customers must conduct their own tests to determine the suitability of the material for their specific applications.
